Place of Origin: | Guangdong, China (Mainland) |
Brand Name: | CSZIY |
Certification: | SGS |
material: | seamless steel |
---|---|
Spring type: | cylinder |
Load type: | compression |
Usage: | furniture |
Force: | as your request |
Inside: | gas |
Gas resource: | Nitrogen |
Tube: | black painted/as your request |
Minimum Order Quantity: | 20PCS |
---|---|
Price: | USD2.~3.2/PCS |
Packaging Details: | one piece in poly bag, 100pcs in carton.or as your request |
Delivery Time: | 4-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 5000PCS PER DAY |
Delivery Detail: | 7 working days |
Length: | 270mm | Stroke: | 90mm |
---|---|---|---|
Tube: | 15mm | Rod: | 6mm |
Force: | 80n | ||
High Light: | nitrogen gas lift,bonnet gas strut |

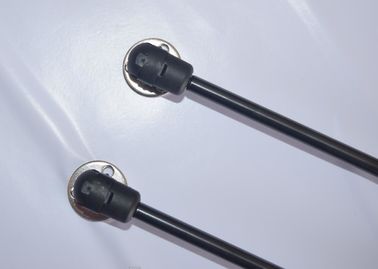

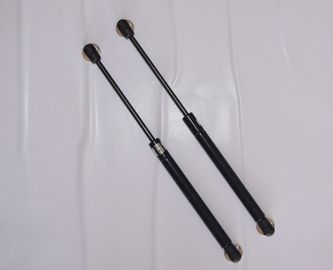

Product Name
Gas Spring
Hole Center Distance :270mm
Stroke:90mm
Force:80n/100n
Thread Dia.:M6
Material:Metal
Due to dedicated to research gas damper for furniture especially for cabinets . At now, we can provide series high quality for furniture,such as for bed, elevator basket , conner rack. Our dampers provide smooth speed without no shakes . More detailed information , please check the video .
High quality, professional service , experienced design .
That's all we can provide .
Choose us now, let's build a high-efficient kitchen . More products detailed , please feel free to contact us .
TYPE : Machinery Gas strut
Material :stainless steel ,steel
FOB port: Guangzhou ,Shenzhen
LOGO:We can printed your Logo
Color: Black, silver, yellow, white or as your request.
Sample:We can provide 2 free sample
Delivery time :15-25days
Pressure value: 50-4000N
MOQ :2pcs
lid stay gas spring :
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 1501200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
OEM Manufacturing welcome: Product, Package...
Sample order
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
