|Place of Origin:||Guangdong, China (Mainland)|
|Force:||as your request|
|Tube:||black painted/as your request|
|Minimum Order Quantity:||20PCS|
|Packaging Details:||one piece in poly bag, 100pcs in carton.or as your request|
|Delivery Time:||4-7 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, , MoneyGram|
|Supply Ability:||5000PCS PER DAY|
|Delivery Detail:||7 working days|
nitrogen gas lift,
gas spring lift

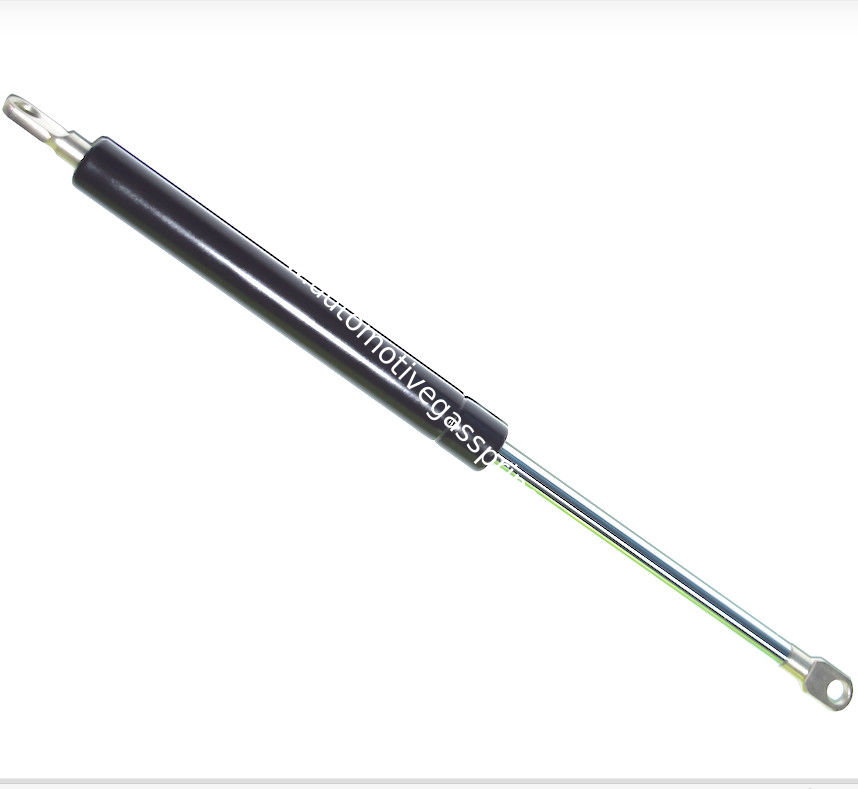

66lb Force 130mm Stroke Gas Spring for Furniture Gas Strut Door 350mm Central Distance
Product Name:Gas Spring
Hole Center Distance :350mm
1.seamless steel rod
2,2 years guarantee.
3,OEM is welcome
4,we are a factory
Except this mini gas lift, we also have varied of gas spirngs/struts/lifts for machinery,automotive,furniture, train ect.
Tube diameter from 12mm to 42mm .If you don't know how to choose , please contact us .
Our professional engineer can design it .
lid stay gas spring :
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
|Extended length(mm)||stroke length(mm)||D1*D2(MM)||Force F1(N)||Fr(max)|
lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
OEM Manufacturing welcome: Product, Package...
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.
By virtue of our experience gathered over many years, GuangZhou CSZY Hardware Co.,Ltd
(CSZY)Spring can meet your individual requirements, such as gas spring for Furniture, medical, Automobile, Machinery etc .
The gas spring (often also called gas struts, gas damper or gas pressure damper) is superior to other solutions in many points and offers many advantages.
These products are selfcontained systems, filled with pressurized nitrogen and available to manufacture with body diameters from 12mm to 42mm and forces from 30N to 2800N. The filling tolerance is between 15N and +30 N.
The gas spring consistently works in a temperature range from -35C to +80C.
Hydraulic oil is used for the end damping, it provides a gentle damping when gas spring working.
The piston orifice controls the extension and compression speeds.
We provide 2 years with 50,000 cycle Guaranty .
High quality, professional service , experienced design .
That's all we can provide .
Choose us now, let's build a high-efficient dental chair . More products detailed , please feel free to contact us .
