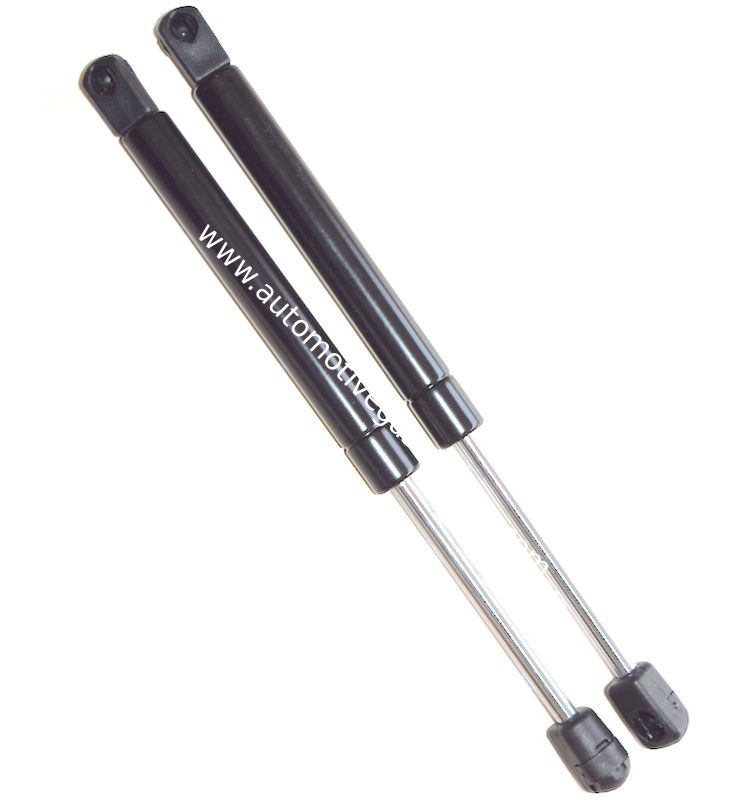

12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb

12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb

  • 12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb
  • 12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb
  • 12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb
12" Compression Gas Spring Strut Shock Lift Prop Rod Cylinder 60 lb
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CSZIY
Certification: SGS
material: seamless steel
Spring type: cylinder
Load type: compression
Usage: furniture
Force: as your request
Inside: gas
Gas resource: Nitrogen
Tube: black painted/as your request
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: USD2.~3.2/PCS
Packaging Details: one piece in poly bag, 100pcs in carton.or as your request
Delivery Time: 4-7 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000PCS PER DAY
Delivery Detail: 7 working days
Contact Now
Detailed Product Description
High Light:

nitrogen gas lift

,

gas spring lift

12" Compression Gas Strut Spring Shock Lift Prop rod Cylinder 60 lb



12" 60 LB GAS PROP

Part Number: CS-YQ-03

Extended Length 12" Center eyes of ball sockets

Compressed length 8.5" Center eyes of ball sockets

Force 60 lbs

Ball Sockets 10mm

A pair (2) of replacement shocks

with 2 years warranty



Specifications

Product Name: 12" Compression Gas Strut Spring Shock Lift Prop rod Cylinder 60 lb



Material: seamless steel (304 stainless steel for your choice)



Color :black ,red, yellow,white or as your request



Thread :custom-made



Joints: As customers' requirement



Used: industry machine



Warranty:2 year



Package:1 pcs in a poly bag, 50pcs in a carton.






lid stay gas spring :



This separate the oil from the gas inside the spring ,

so that the damping can be very closely controlled in either compression or extension .







Product description:

Cylinder material: Steel, SS304, SS316

Shaft material: Steel, SS304, SS316

Cylinder finishing: Black ,Silver or other color

Shaft finishing: Chrome/QPQ





Salt spray time: achieving more than  72 hours.

Fatigue test: decay less than 9% after 20,000 cycles.

Service life: at least 50,000 cycles in normal environment.

Working temperature range: –30 °C - +80 °C.



Main Specifications and Dimensions:



Extended length(mm) stroke length(mm) D1*D2(MM) Force F1(N) Fr(max)
100-300 30-100 4*12 20-200 30
301-600 101-200 6*15 50-200 50
601-900 201-300 8*18 100-800 60
901-1200 301-400 10*22 150-1150 80
1201-1600 401-500 12*22 1501200 80
500-1200 200-500 12*26 200-1500 80
500-1300 200-600 14*28 200-2000 100





Brief introduction:

lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.



Delivery:

1000 PCS, 7 days.

Shipment: We can accept your appionted forwarder.







OEM Manufacturing welcome: Product, Package...
Sample order
 We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.







Company introduction

Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.
