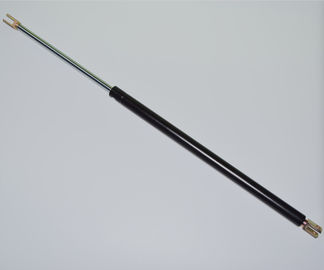

40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery

40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery

    • 40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery
    • 40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery
    • 40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery
  • 40kg 90 lbs Compression Gas Springs / Lift Support Strut With Metal Clevis Fittings For Machinery

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: CSZIY
    Certification: SGS
    material: seamless steel
    Spring type: cylinder
    Load type: compression
    Usage: furniture
    Force: as your request
    Inside: gas
    Gas resource: Nitrogen
    Tube: black painted/as your request

    Payment & Shipping Terms:

    Minimum Order Quantity: 20PCS
    Price: USD2.~3.2/PCS
    Packaging Details: one piece in poly bag, 100pcs in carton.or as your request
    Delivery Time: 4-7 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000PCS PER DAY
    Delivery Detail: 7 working days
    Detailed Product Description

    40kg 90 lbs springs lift support strut with metal clevis fittings for machinery



    Product Name:Gas Spring

    Hole Center Distance :600mm

    Stroke:250mm

    Force:400n

    Thread Dia.:M8

    Material:Metal





    The Auto Gas Springs can be customized according to your requirements:Force ,Stroke,Thread diameter.Please contact us freely if you need to order.

    Please contact us for detail!




    Due to dedicated to research gas damper for furniture especially for cabinets . At now, we can provide series high quality for furniture,such as for bed, elevator basket , conner rack. Our dampers provide smooth speed without no shakes . More detailed information , please check the video .



    High quality, professional service , experienced design .

    That's all we can provide .

    Choose us now, let's build a high-efficient kitchen . More products detailed , please feel free to contact us .



    Specifications

    1. OEM Manufacturing welcome: Product, Package...


    2. Sample order


    3. We will reply you for your inquiry in 24 hours.


    4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



    lid stay gas spring :



    This separate the oil from the gas inside the spring ,

    so that the damping can be very closely controlled in either compression or extension





    Product description:

    Cylinder material: Steel, SS304, SS316

    Shaft material: Steel, SS304, SS316

    Cylinder finishing: Black ,Silver or other color

    Shaft finishing: Chrome/QPQ





    Salt spray time: achieving more than  72 hours.

    Fatigue test: decay less than 9% after 20,000 cycles.

    Service life: at least 50,000 cycles in normal environment.

    Working temperature range: –30 °C - +80 °C.



    Main Specifications and Dimensions:



    Extended length(mm) stroke length(mm) D1*D2(MM) Force F1(N) Fr(max)
    100-300 30-100 4*12 20-200 30
    301-600 101-200 6*15 50-200 50
    601-900 201-300 8*18 100-800 60
    901-1200 301-400 10*22 150-1150 80
    1201-1600 401-500 12*22 1501200 80
    500-1200 200-500 12*26 200-1500 80
    500-1300 200-600 14*28 200-2000 100





    Brief introduction:

    lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.



    Delivery:

    1000 PCS, 7 days.

    Shipment: We can accept your appionted forwarder.







    OEM Manufacturing welcome: Product, Package...
    Sample order
     We will reply you for your inquiry in 24 hours.
    After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.







    Company introduction

    Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
    set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.
