20KG/44lb 155mm Stroke Spring Lift Gas Springs for Furniture Prop Door

20KG/44lb 155mm Stroke Spring Lift Gas Springs for Furniture Prop Door

  • 20KG/44lb 155mm Stroke Spring Lift Gas Springs for Furniture Prop Door
20KG/44lb 155mm Stroke Spring Lift Gas Springs for Furniture Prop Door
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CSZIY
Certification: SGS
material: seamless steel
Spring type: cylinder
Load type: compression
Usage: furniture
Force: as your request
Inside: gas
Gas resource: Nitrogen
Tube: black painted/as your request
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: USD2.~3.2/PCS
Packaging Details: one piece in poly bag, 100pcs in carton.or as your request
Delivery Time: 4-7 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000PCS PER DAY
Delivery Detail: 7 working days
Contact Now
Detailed Product Description
High Light:

nitrogen gas lift

,

bonnet gas strut

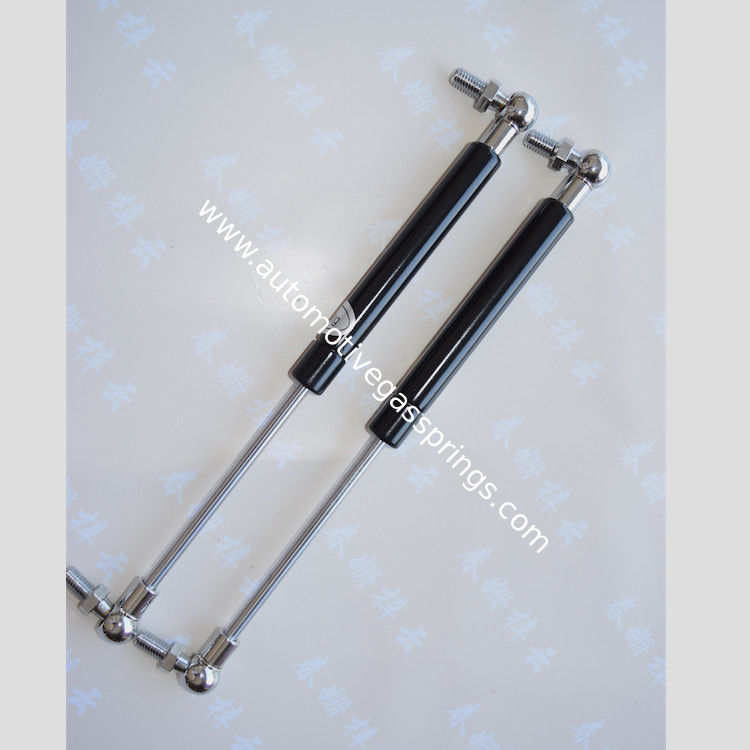

20KG/44lb 155mm Stroke Gas Strut Lift Spring for Furniture Prop Door

Piston Rod Diameter: 6 mm

Cylinder diameter (mm) : 15 mm

Extension Length: 390mm

Stroke length:155mm

Compression Force: 200N

End Fittings: Metal Ball jiont

All goods can be customized





Specifications

Product Name: 20KG/44lb 155mm Stroke Gas Strut Lift Spring for Furniture Prop Door



Material: seamless steel (304 stainless steel for your choice)



Color :black ,red, yellow,white or as your request



Thread :custom-made



Joints: As customers' requirement



Used: industry machine



Warranty:2 year



Package:1 pcs in a poly bag, 50pcs in a carton.





lid stay gas spring :



This separate the oil from the gas inside the spring ,

so that the damping can be very closely controlled in either compression or extension





Product description:

Cylinder material: Steel, SS304, SS316

Shaft material: Steel, SS304, SS316

Cylinder finishing: Black ,Silver or other color

Shaft finishing: Chrome/QPQ





Salt spray time: achieving more than  72 hours.

Fatigue test: decay less than 9% after 20,000 cycles.

Service life: at least 50,000 cycles in normal environment.

Working temperature range: –30 °C - +80 °C.



Main Specifications and Dimensions:



Extended length(mm) stroke length(mm) D1*D2(MM) Force F1(N) Fr(max)
100-300 30-100 4*12 20-200 30
301-600 101-200 6*15 50-200 50
601-900 201-300 8*18 100-800 60
901-1200 301-400 10*22 150-1150 80
1201-1600 401-500 12*22 1501200 80
500-1200 200-500 12*26 200-1500 80
500-1300 200-600 14*28 200-2000 100





Brief introduction:

lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.



Delivery:

1000 PCS, 7 days.

Shipment: We can accept your appionted forwarder.







OEM Manufacturing welcome: Product, Package...
Sample order
 We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.







Company introduction

Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.










High quality, professional service , experienced design .

That's all we can provide .

Choose us now, let's build a high-efficient dental chair . More products detailed , please feel free to contact us .
