450mm Length Compression Gas Springs for Automobile Tool Box 260N Load

450mm Length Compression Gas Springs for Automobile Tool Box 260N Load

  • 450mm Length Compression Gas Springs for Automobile Tool Box 260N Load
  • 450mm Length Compression Gas Springs for Automobile Tool Box 260N Load
  • 450mm Length Compression Gas Springs for Automobile Tool Box 260N Load
450mm Length Compression Gas Springs for Automobile Tool Box 260N Load
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CSZIY
Certification: SGS
material: seamless steel
Spring type: cylinder
Load type: compression
Usage: furniture
Force: as your request
Inside: gas
Gas resource: Nitrogen
Tube: black painted/as your request
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: USD2.~3.2/PCS
Packaging Details: one piece in poly bag, 100pcs in carton.or as your request
Delivery Time: 4-7 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000PCS PER DAY
Delivery Detail: 7 working days
Contact Now
Detailed Product Description
High Light:

nitrogen gas lift

,

gas spring lift

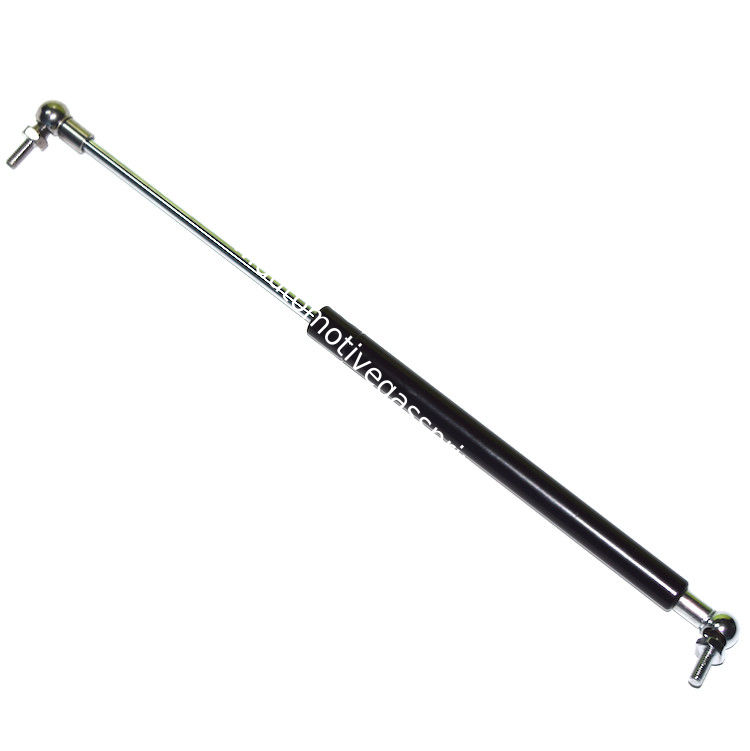

450mm Length 160mm stroke Gas Spring for Automobile Tool Box 260N Load


Product Name:Gas Spring
Hole Center Distance :450mm
Stroke:160mm
Force:260n
Thread Dia.:M8
Material:Metal



Cushy Release
Actuation force of lockable gas springs is directly proportional to the extension force which can cause uncomfortable handling in low and high extension forces. With this
  • function you can optimize the actuation force for ergonomic handling.

Main application areas:

  • Furniture industry
  • Healthcare equipments, rehabilitation
  • Fitness, wellness
  • Public transport vehicles
  • Automotive
  • Other applications

We can help you to develop the appropriate lockable gas spring for your application cooperating with application engineering of CSZY which requires minimum order quantities. We also provide many end-products for lockable gas springs, such as varied release systerm , buttons .

Specifications

1.seamless steel rod
2,2 years guarantee.
3,OEM is welcome
4,we are a factory
5,reasonal price




lid stay gas spring :

This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension


Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ


Salt spray time: achieving more than  72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.

Main Specifications and Dimensions:


Extended length(mm)stroke length(mm)D1*D2(MM)Force F1(N)Fr(max)
100-30030-1004*1220-20030
301-600101-2006*1550-20050
601-900201-3008*18100-80060
901-1200301-40010*22150-115080
1201-1600401-50012*22150120080
500-1200200-50012*26200-150080
500-1300200-60014*28200-2000100



Brief introduction:
lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.

Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.



OEM Manufacturing welcome: Product, Package...
Sample order
 We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Company introduction

Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.






By virtue of our experience gathered over many years, GuangZhou CSZY Hardware Co.,Ltd

(CSZY)Spring can meet your individual requirements, such as gas spring for Furniture, medical, Automobile, Machinery etc .
The gas spring (often also called gas struts, gas damper or gas pressure damper) is superior to other solutions in many points and offers many advantages.
These products are selfcontained systems, filled with pressurized nitrogen and available to manufacture with body diameters from 12mm to 42mm and forces from 30N to 2800N. The filling tolerance is between 15N and +30 N.
The gas spring consistently works in a temperature range from -35C to +80C.
Hydraulic oil is used for the end damping, it provides a gentle damping when gas spring working.
The piston orifice controls the extension and compression speeds.
We provide 2 years with 50,000 cycle Guaranty .

High quality, professional service , experienced design .
That's all we can provide .
Choose us now, let's build a high-efficient dental chair . More products detailed , please feel free to contact us .
