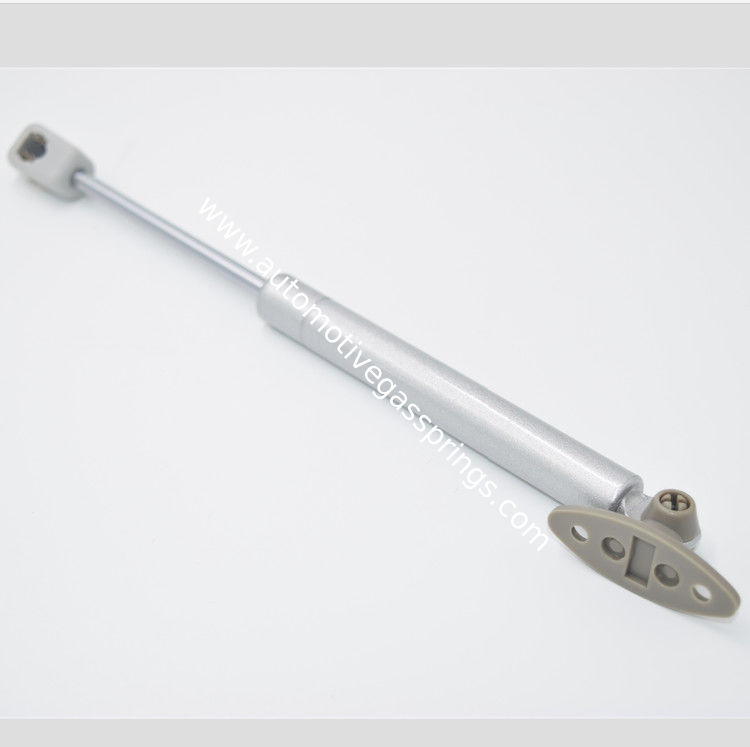

hydraulic Gas Spring For Outdoor Waterproof Display Solar Led Ad Light Box

hydraulic Gas Spring For Outdoor Waterproof Display Solar Led Ad Light Box

  • hydraulic Gas Spring For Outdoor Waterproof Display Solar Led Ad Light Box
hydraulic Gas Spring For Outdoor Waterproof Display Solar Led Ad Light Box
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: CSZIY
Certification: SGS
Model Number: YQ512-500N
material: seamless steel
Spring type: cylinder
Load type: compression
Usage: furniture cabinet
Force: as your request
Inside: gas
Gas resource: Nitrogen
Tube: black painted/as your request
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: USD2.~3.2/PCS
Packaging Details: one piece in poly bag, 100pcs in carton.or as your request
Delivery Time: 4-7 working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000PCS PER DAY
Delivery Detail: 7 working days
Contact Now
Detailed Product Description
High Light:

nitrogen gas lift

,

bonnet gas strut

Outdoor Waterproof display Solar LED ad light box gas springs struts lifter

Our standard furniture cabinet any stop gas lift springs specifications as folloiwng:



Extended length:250mm

Stroke length:90mm

tube diameter: 15mm

Rod diameter:6mm

Force: 30n/50n/80n/customized

End connetor: many types can meet your demand .

Usage:furniture cabinet



Specifications

1.seamless steel rod
2,2 years guarantee.
3,OEM is welcome
4,we are a factory
5,reasonal price






Main Specifications and Dimensions:



Extended length(mm) stroke length(mm) D1*D2(MM) Force F1(N) Fr(max)
100-300 30-100 4*12 20-200 30
301-600 101-200 6*15 50-200 50
601-900 201-300 8*18 100-800 60
901-1200 301-400 10*22 150-1150 80
1201-1600 401-500 12*22 1501200 80
500-1200 200-500 12*26 200-1500 80
500-1300 200-600 14*28 200-2000 100





Replacement TIP: There are many brands of gas springs / shocks / struts manufactured today with just about as many names Nitrogen gas, gas, struts, springs, shocks, dampers etc. , some have a part number that is as equally confusing to understand with out a reference guide! If you are looking to add or replace any gas shocks (they all get weak, worn, bent or broken and need to be replaced at some time) it is easier than you think, here are the basics



1. Just measure the extended length of your shock (from the center of the socket to the center of the socket) that’s the length (that was easy!)



2. if you do not know the force pressure, and it is not listed on the shock (most times it is encoded in the part number on the shock) you can always do a simple test, IE camper topper lid … use a scale to measure the force needed to open the door! That will get you really close



3. Shocks can come in the same length and force pressure but different in physical size (rod diameter / tube diameter- 6x15 / 8x18 / 10x22 / 14x28 MM etc) I think of the physical size in terms of ratings … standard duty (6x15mm) … heavy duty (8x18) … extra heavy duty (10x22), and when nothing else will do use the maxi 14x22MM



4. Mounting brackets / studs can be permanent or replaceable the most common are the ball and socket style (10mm or 13MM) then the ring / eye style. Most shocks come with threaded ends to allow for interchangeable configurations. If you have the option I like to use the ball and socket when ever adding a shock as it is much more flexible then the ring / eye style.





Brief introduction:

lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.



Delivery:

1000 PCS, 7 days.

Shipment: We can accept your appionted forwarder.







OEM Manufacturing welcome: Product, Package...
Sample order
 We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.







Company introduction

Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are a professional Hardware company, Our goods including Gas springs, Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier. We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.
