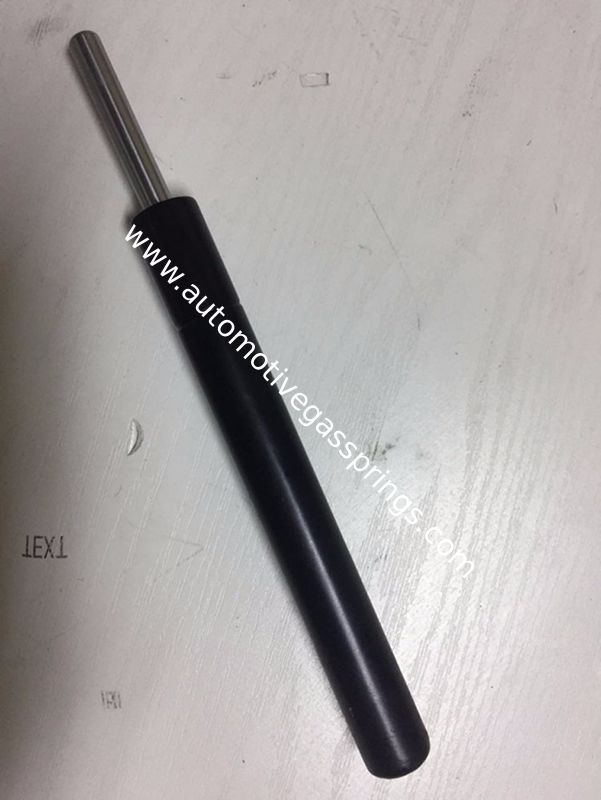

Master lift mini gas spring 205mm for monitor arm , miniature gas springs

Master lift mini gas spring 205mm for monitor arm , miniature gas springs

  • Master lift mini gas spring 205mm for monitor arm , miniature gas springs
  • Master lift mini gas spring 205mm for monitor arm , miniature gas springs
Master lift mini gas spring 205mm for monitor arm , miniature gas springs
Product Details:
Place of Origin: CHINA
Brand Name: CSZY
Model Number: YQ
Payment & Shipping Terms:
Minimum Order Quantity: 20PCS
Price: USD1.4~USD2.5/PCS
Packaging Details: 1 pcs/polybag, 50-100 pcs/carton carton and packing can be customized
Delivery Time: 4-7WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10000PCS PER DAY
Contact Now
Detailed Product Description
Material: Seamless Steel Surface Finish: Spray
Rod Diameter: 8mm Total Length: 205mm
Stroke Length: 55mm
High Light:

nitrogen gas lift

,

gas spring lift

2017 New arrival master lift mini gas spring 205mm for monitor arm





specifications mm
tube diameter 18mm
rod diameter 8mm
stroke length 55mm
tube length

180mm







Name New flexible gas spring for LCD monitor arm
Quality 1.180,000 times -passed TUV fatigue test
2.ROHS certificated by SGS
3.Passed ISO9001 and ISO/TS 16949 International Quality System Certification
Use gas spring can be used in tool box .
Material steel
Color silver/black/others
Connector ball connector/metal eye/clevis and so on
Advantage 1.pass 180,000 times fatigue times
2.we can supply samples for free
3.Competivite price
4.Fast delivery time:1000 pcs 3 days
The size can be made according the customer requirment.





Spec.





Product No. Extended length Stroke(mm) DIA(mm) Force
YQL 100-300 30-100 12*4 5-100N
YQL 300-600 100-200 15*6 10-300N
YQL 600-900 200-300 18*8 50-600N
YQL 900-1200 300-400 22*10 100-1200N
YQL 1200-1600 400-500 25*12 100-1800N
YQL 1600-2000 500-600 28*14 100-3000N
YQL 2000-2500 600-700 28*16 100-3000N
YQL 2500-3000 700-900 40*20 300-4000N





Features

1.Salt spray time: achieving more than 72 hours

2.Fatigue test: decay less than 9% after 20,000 cycles.

3.Service life: at least 50,000 cycles in normal environment.

4.Working temperature range: –30 °C - +80 °C.

5.Material: seamless steel, SS304,SS316

6. Quality: 100,000 cycles; ISO/TS16949; ISO9001:2008.

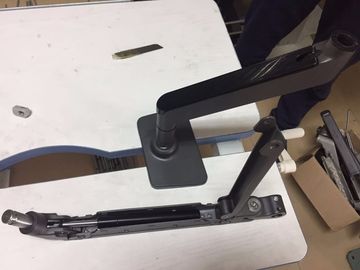

Installation pics for your reference :

Master lift mini gas spring 205mm for monitor arm , miniature gas springs 0





Warm Tips!

If you don't know the exactly specifications, just let us know your product size

and weight ,then our professional engineer can provide design .





Packing:

Neutro-packing or custmozied .

We provide excellent custmozied packing service to all of you including :

1. print your logo on gas struts body

2.print your logo on packing box .

3.print your logo on plastic bag .

4.varied packings ,such as custmozied bag,boxes, cartons....









Why choose us ?!!

Our value message is " QUALITY IS OUR CULTURE "

"WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE"

Automobile Gas Spring is our (CORE COMPETENCIES)



1.Competitive Advantage Products

2.Full REFUND in case of Bad quality OR Late Delivery

3.Payment By Paypal

4.Confidentiality Agreement " Business Secret CONTRACT "

5.Quality Assurance CONTRACT

6.Free Sample Offer & Small Order Welcomed

7.After Sales Service 24*7



Our company is specialized in the production of gas springs and dampers. Its lifting force is basically constant during the whole working stroke. It has the cushion property, thereby avoiding the impact when objects are closed, and its moving stroke can be stayed at any places. When in operation, it requires no outside motive power, thereby saving the energy. It has the advantages of simple structure, convenient and quick installation and no maintenance.
